Products description

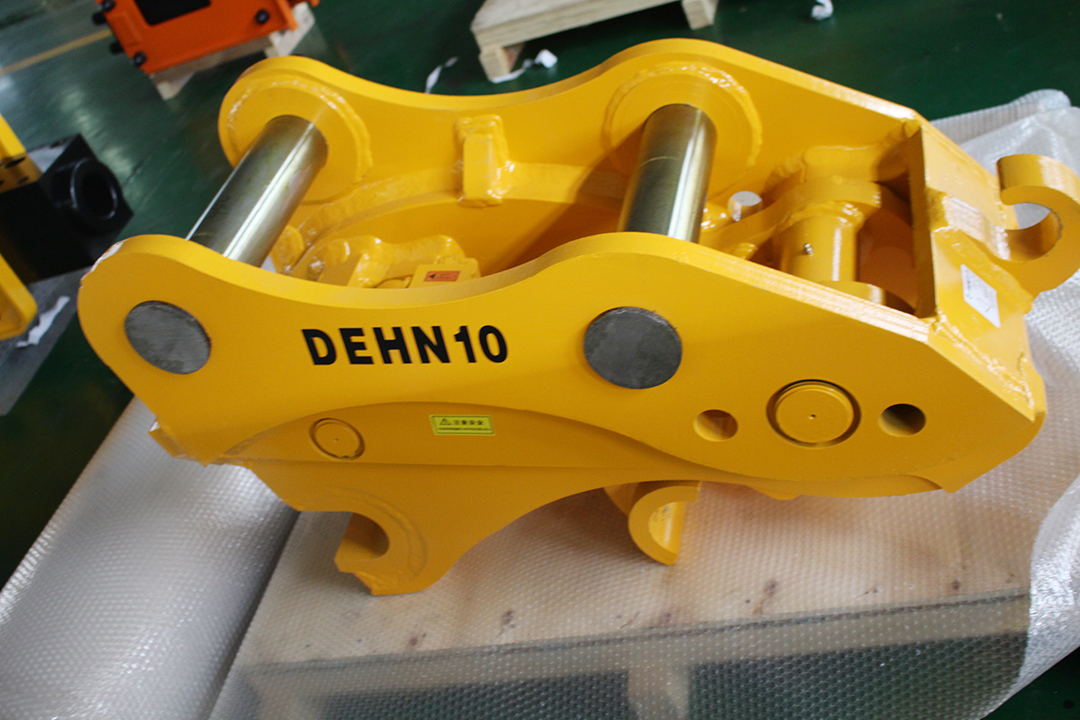

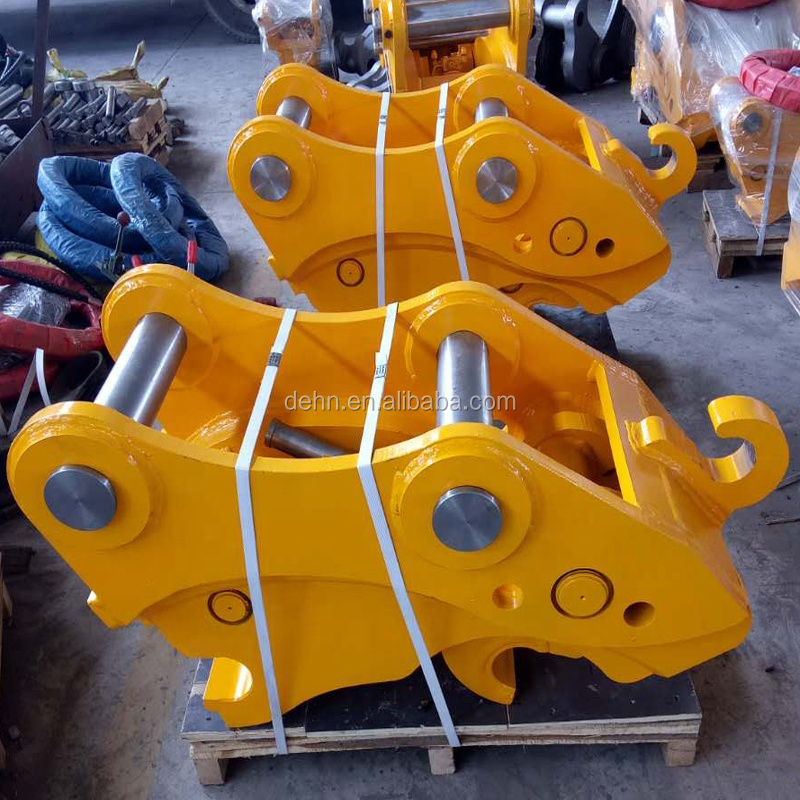

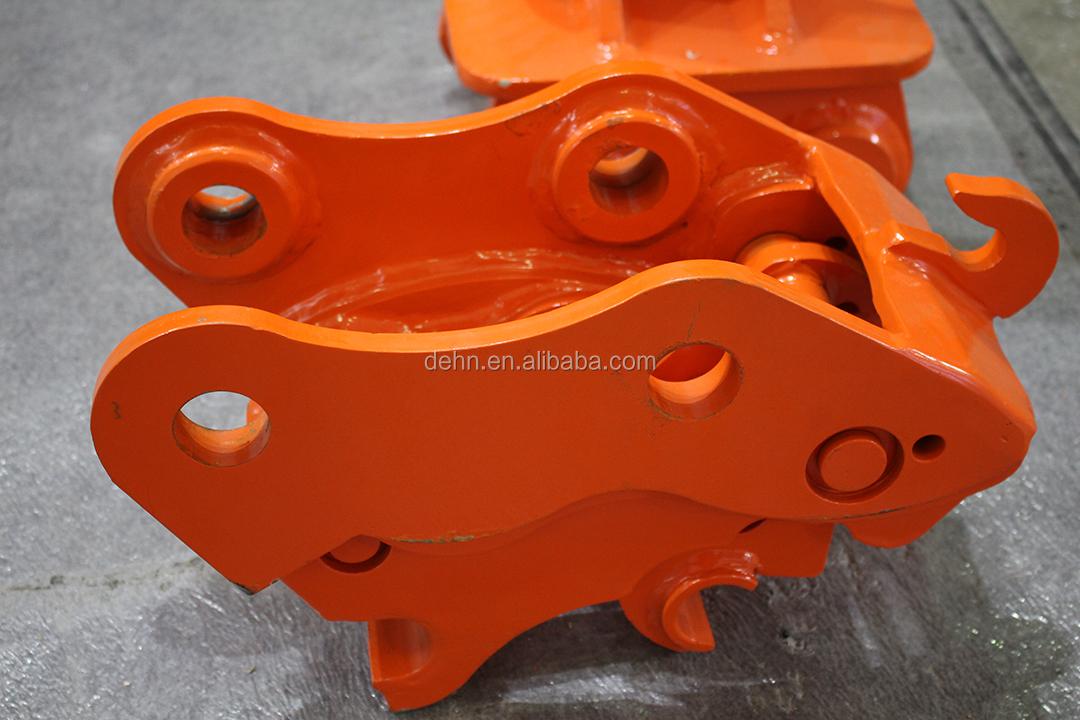

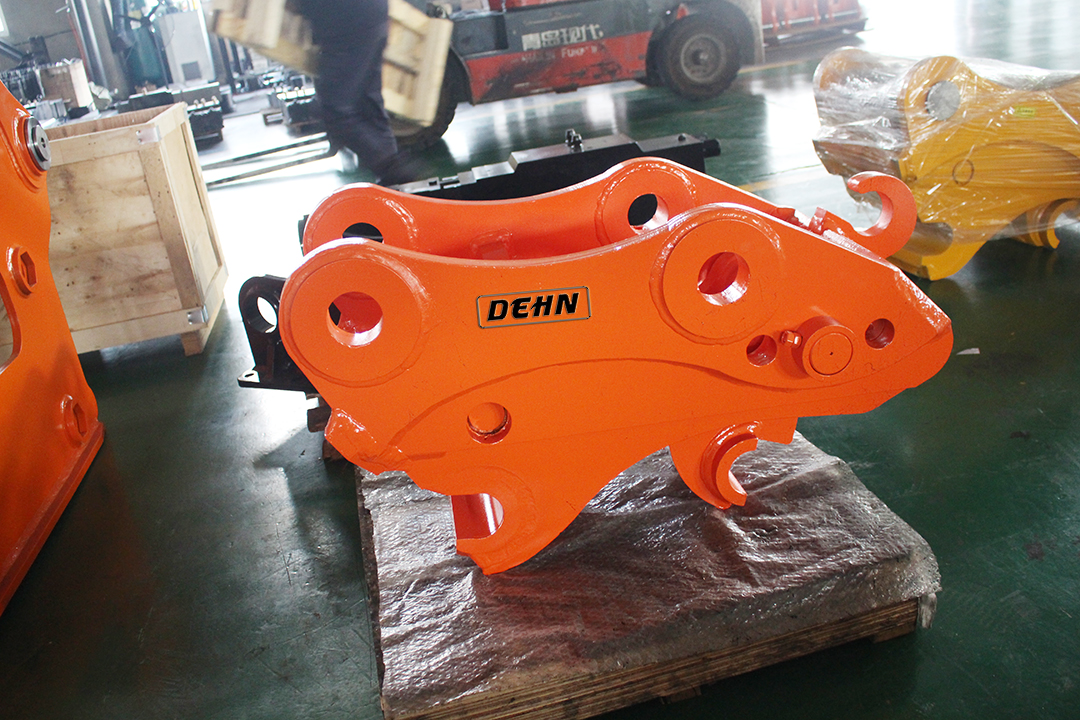

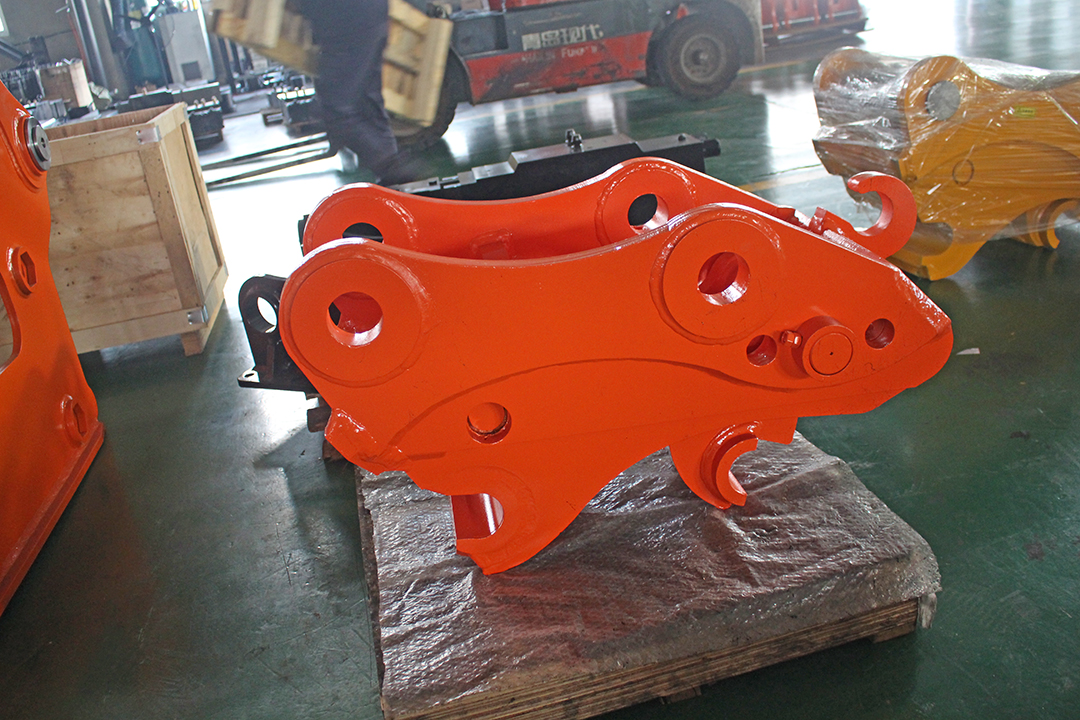

Detail images
|
model |
unit |
DEHN MINI |
DEHN 02 |
DEHN 04 |
DEHN 06 |
DEHN 08 |
DEHN 10 |
DEHN 17 |
|
overall length |
mm |
388 |
534-545 |
600 |
765 |
924-944 |
983-1050 |
1006-1173 |
|
overall height |
mm |
246 |
307 |
310 |
388 |
492 |
574 |
558-610 |
|
overall width |
mm |
175 |
258-263 |
270-280 |
354-436 |
449-483 |
543-568 |
606-663 |
|
foream open width |
mm |
80-140 |
155-170 |
180-200 |
232-315 |
306-340 |
375-411 |
416-469 |
|
pin to pin center distance |
mm |
80-150 |
230-270 |
290-360 |
380-420 |
460-480 |
473-540 |
550-620 |
|
retractable distance of oil cylinder |
mm |
170-206 |
205-275 |
340-450 |
340-486 |
256-590 |
413-590 |
520-590 |
|
top to bottom pin distance |
mm |
159 |
195 |
195 |
220 |
275 |
300 |
360 |
|
pin diameter |
mm |
25-40 |
45-50 |
50-55 |
60-70 |
70-80 |
80-90 |
90-120 |
|
weight |
kg |
25-30 |
50-60 |
80-90 |
120-130 |
280-290 |
450-530 |
450-580 |
|
working pressure |
kg/cm2 |
40-380 |
40-380 |
40-380 |
40-380 |
40-380 |
40-380 |
40-380 |
|
required oil flow |
l/min |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
|
suitable excavator |
ton |
1.5-4 |
4-6 |
5-9 |
9-19 |
17-23 |
23-35 |
33-45 |

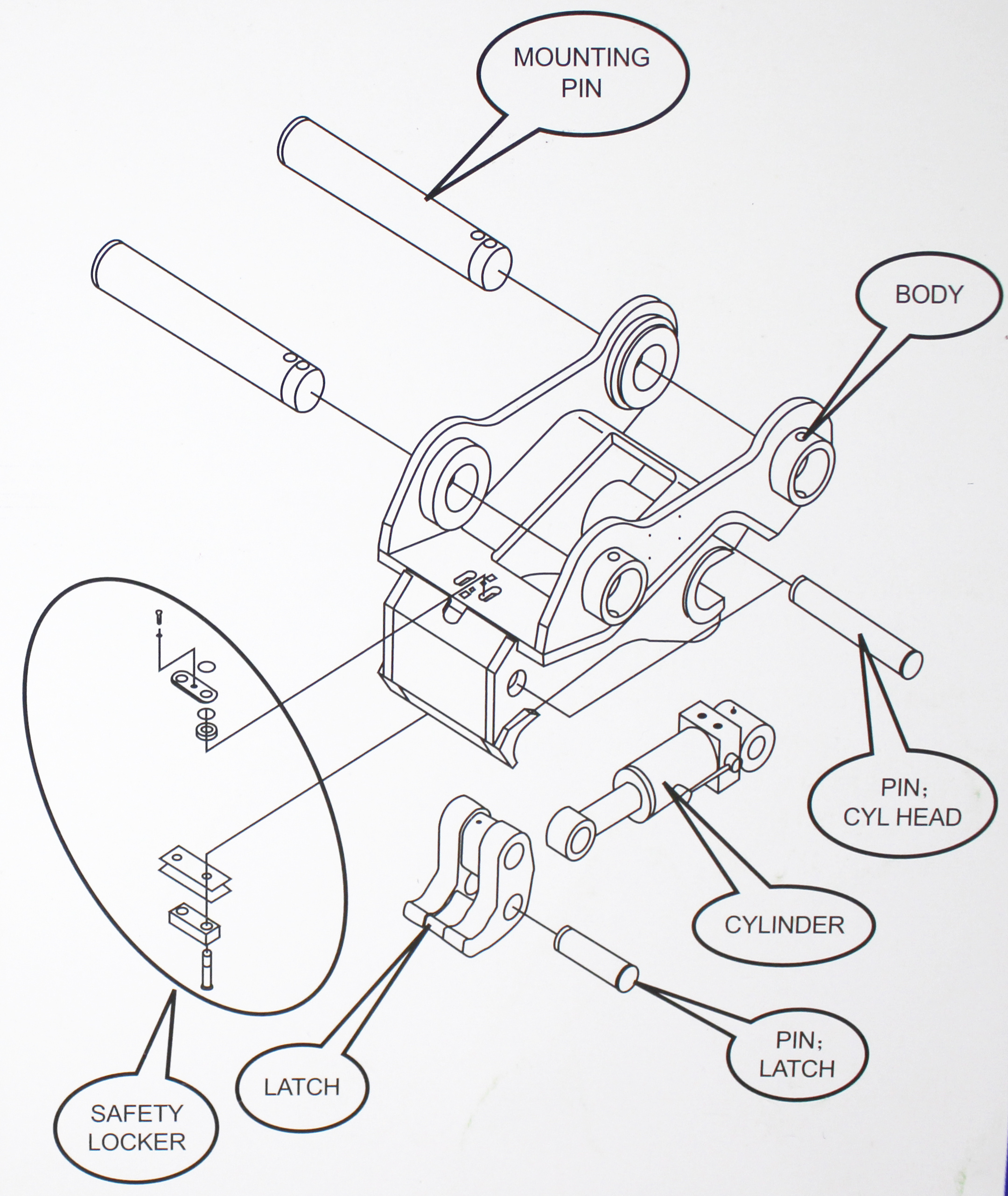

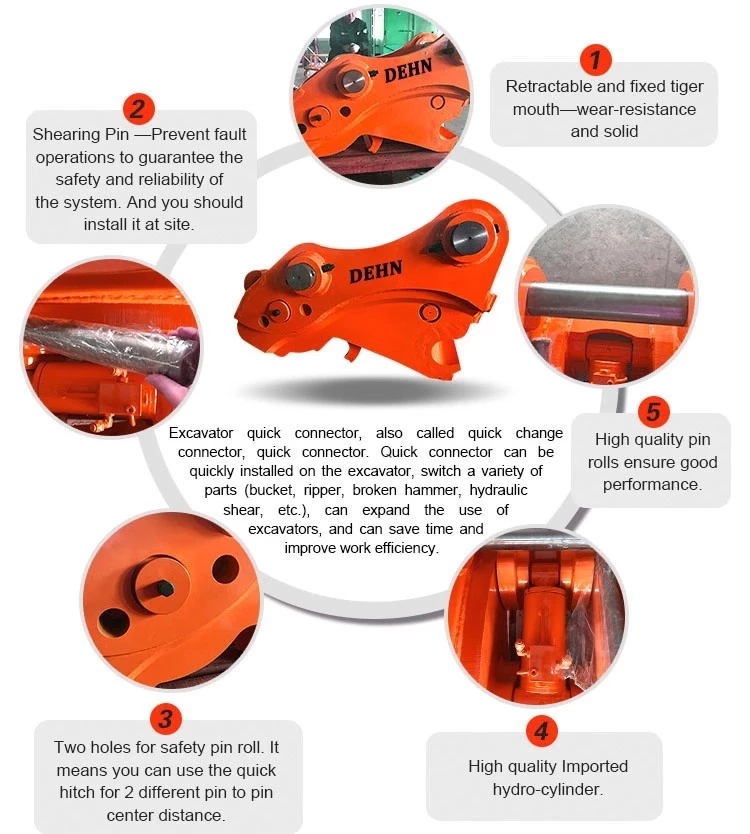

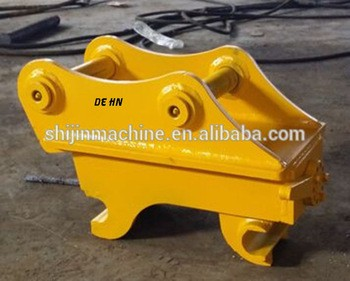

Quick connector structure:
The quick connector is a kind of structural parts, which is composed of main support, movable clamp block, hydraulic cylinder, pin shaft and other parts.

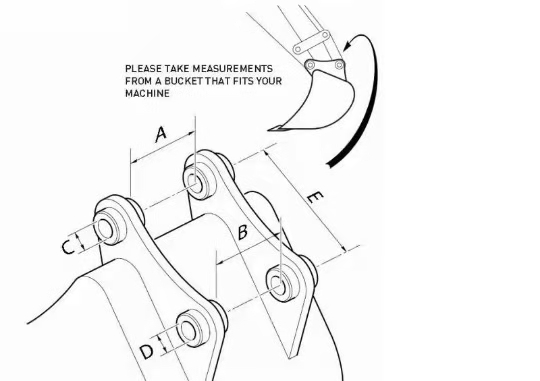

When you need to purchase customized quick connectors, please measure a / B / C / D / E according to the drawing
Packing & Delivery
Mode of transport：deliver by sea/Air/multimodel transport/logistic or Express company is available
Port: QINGDAO/YANTAI

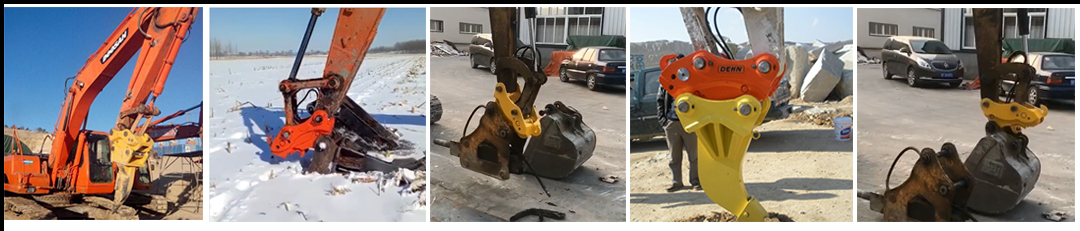

Applicable Filed
Excavator quick connector, also known as quick connector, quick connector. The quick connector can quickly install and switch various configuration parts (bucket, scarifier, crushing hammer, hydraulic shear, etc.) on the excavator, which can expand the scope of use of excavator, save time and improve work efficiency..

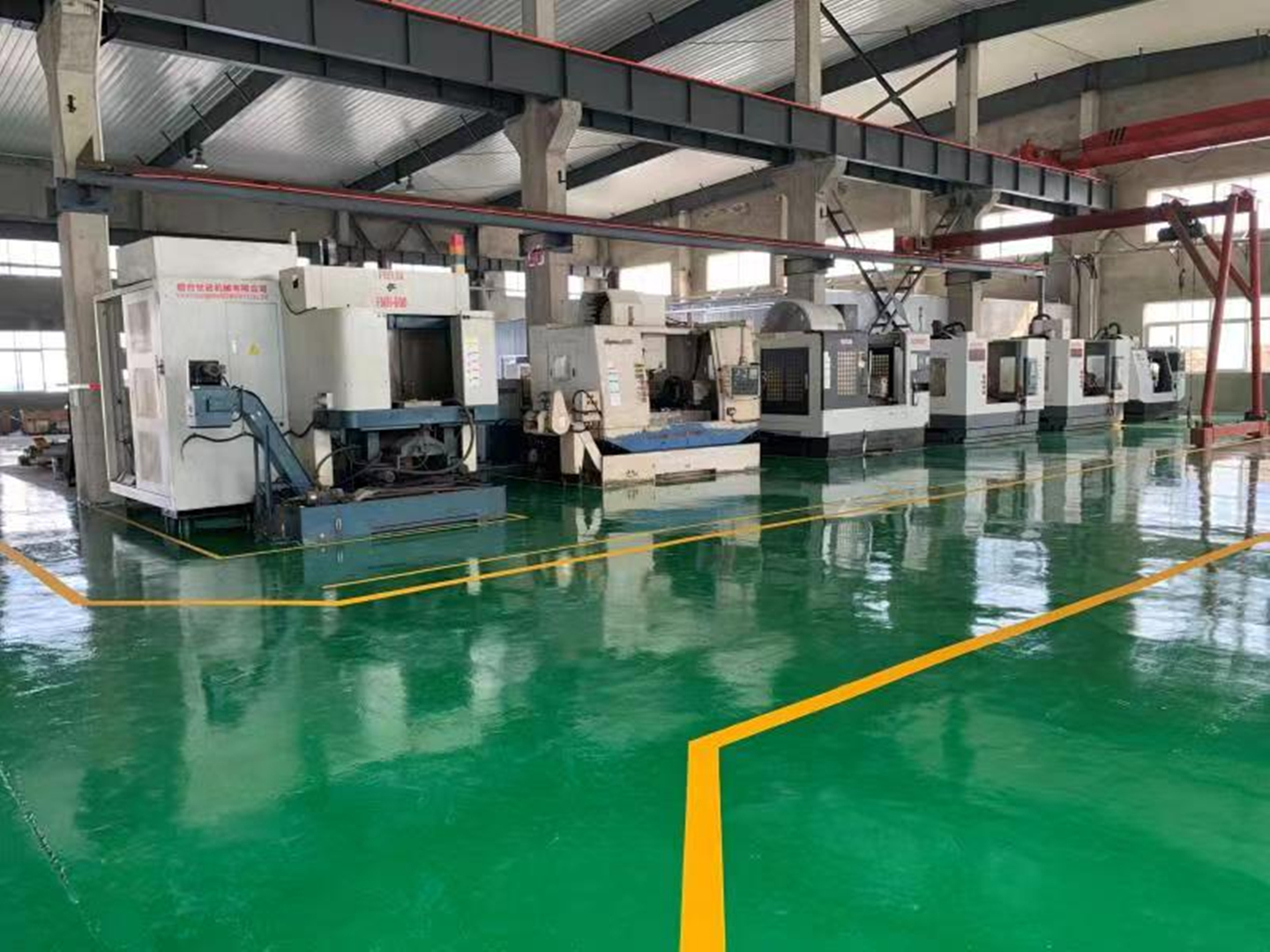

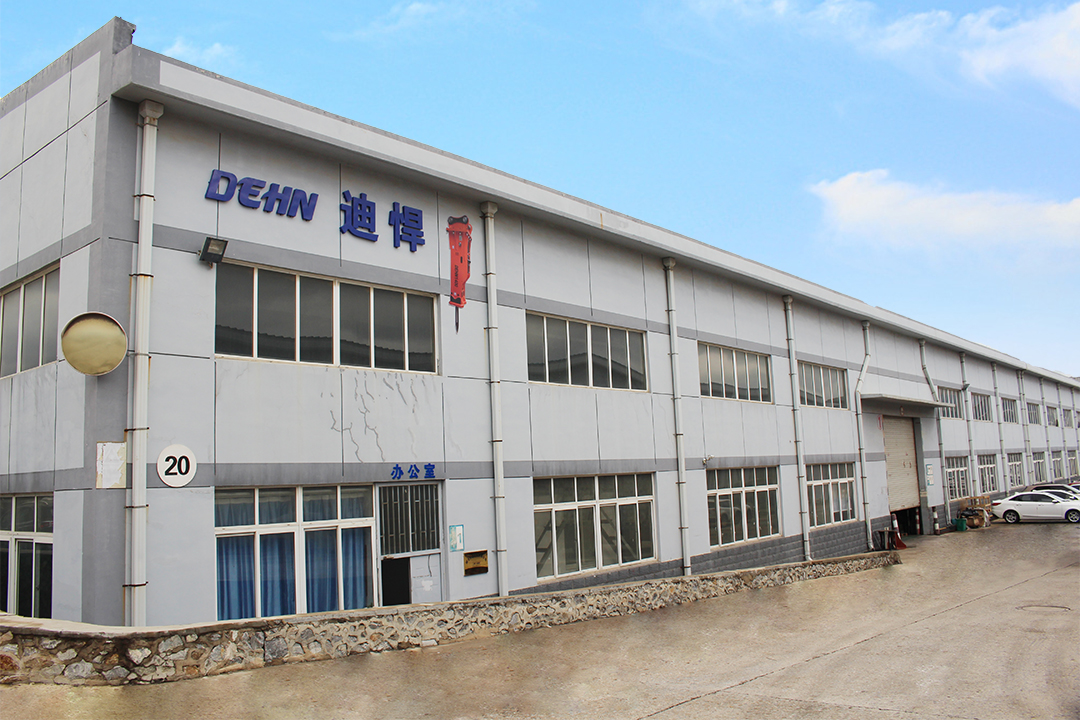

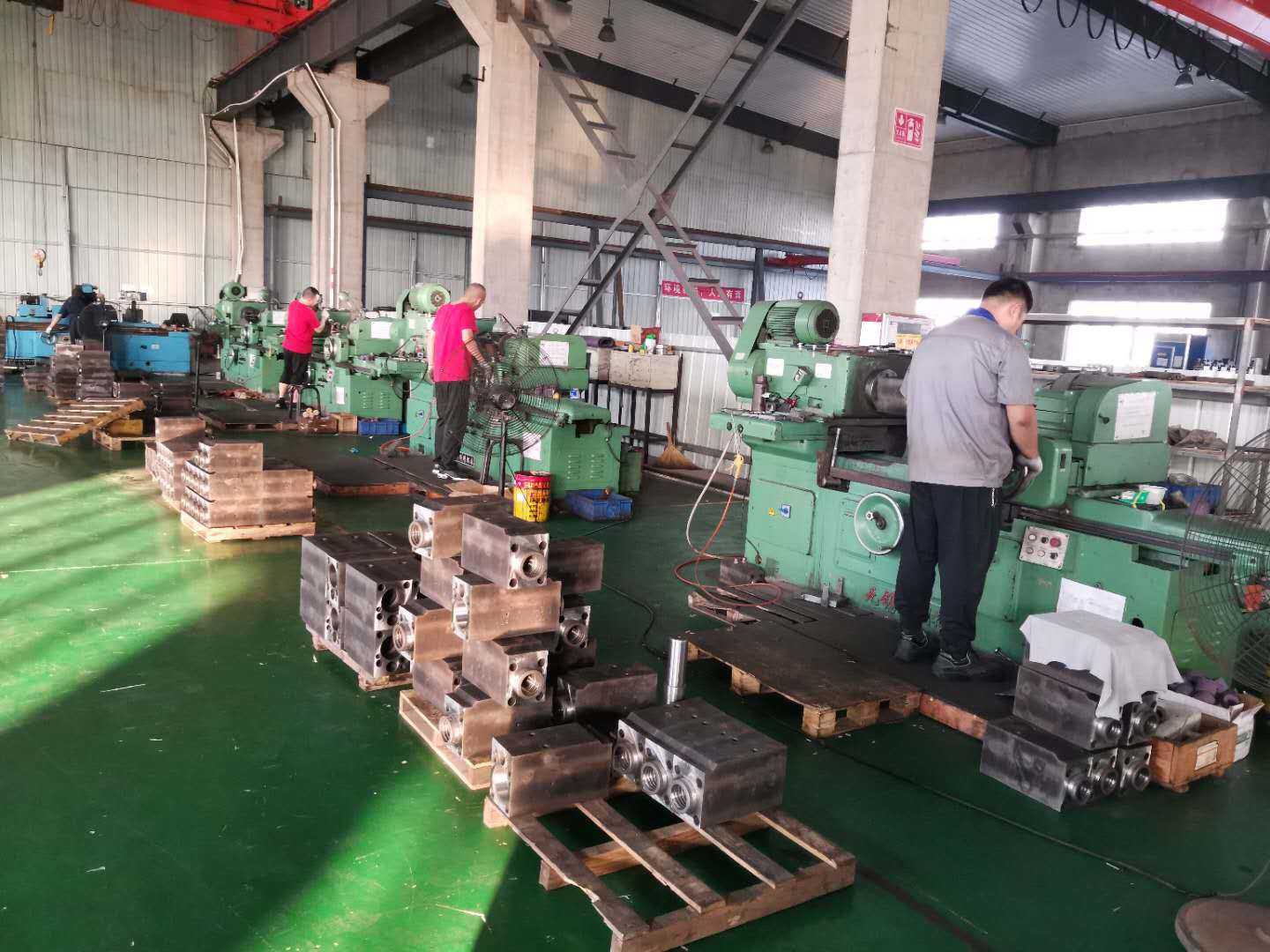

Our Factory
DEHN brand has been approved CE certificate and 4 product patents since 2010. By using the piston recoil energy, to increase performance without additional hydraulic flow input, DEHN rock breakers could achieve optimum performance at low cost, in addition to the SIMPLE body design, with only 2 moving parts, leading to lowest maintenance and repairing cost, which eventually makes your investment best valued!
FAQ
1.Is that the main body color customized? Sure ,but we recommend you yellow, blue and orange.
2. How many days for the delivery time ?
It is about 3-7 working days after the order confirmation.
3. What kind of payments you accept?
Now we accept T/T, L/C or Western Union, other terms also could be negotiated,
4. Are you able to manufacturing products according to customer's design?
Sure, we have made many special orders from abroad since 2010.So we have enough ability to deal with any cases. OEM certificate is
available to provided .
5.What's your advantages in the machinery manufacturing industry?
Fast delivery time ,High quality products, Best customer service ,Adopting the latest production technology.
6. Are you sure that your product will fit my excavator?
Our chisel can be adapted to different excavators. Show me your model number, and we would find you best match products
7. How about the packing of the goods?
We follow the standard export package, wood cases, or as customers' demands
8. How about the packing of the goods?
Standard export package, wood cases, or as customers' demands.
